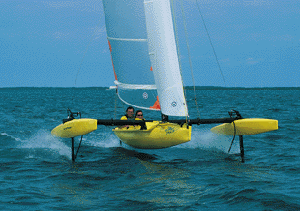

WindRider RAVE
Hulls/Cockpit
Constructed of durable, 100% recyclable linear polyethylene
Molded-in graphics
Sealed outriggers for flotation; Beckson inspection ports on each outrigger
Aluminum, load-bearing space frame
Single anodized aluminum cross beam
Adjustable pedals control steering
Contoured, paddled seats with adjustable backrests
Hydrofoils
Extruded aluminum, T-shape foils
Control wands automatically adjust outrigger foils' angles of attack
Remote releases allow lowering of foils from the cockpit
Rigging
Stayed aluminum mast
Loose footed, battened, reinforced mylar mainsail
Self-tacking, mylar blade jib with traveler
All sheets routed to rear cockpit for easy handling
Quality Harken hardware
| SPECIFICATIONS |
| | LOA | 16'0" |
| | LWL | 16'0" |
| | Beam (foil tip to foil tip) | 17'0" |
| | Weight | 380 lbs. |
| | Total Sail Area (main & jib) | 195 sq. ft. |
| | Draft (foils up) | 12" |
| | Maximum Weight Capacity | 400 lbs.* |
| | Designer | Dr. Sam Bradfield |
| | Introduced | 1998 |
*Actual foil borne weight capacity may be less, depending on wind speeds
